PRODUCTS
EBLB001 EBLB002 EBLB003 EBLB004 EBLB005

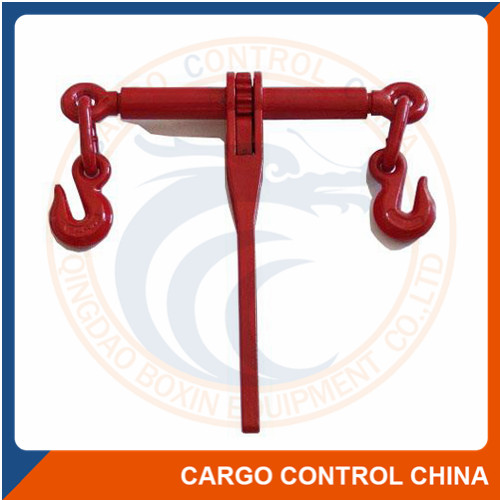

RATCHET TYPE BINDER GRADE 70
MATERIAL: CARBON STEEL
FINISHING: POWDER COATED OR GALVANISED
HEAT TREATED: QUENCHED AND TEMPERED
MINIMUM BREAKING LOADING: 3.5 TIMES TO WLL
PACKING: CARTON BOX THEN STEEL PALLET
ART # | SIZE | WLL | BS | FIT CHAINS |
EBLB001 | 1/4"-5/16" | 1000KG/2200LBS | 3500KG/7800LBS | 1/4", 5/16" |
EBLB002 | 5/16"-3/8" | 2450KG/5400LBS | 8620KG/19000LBS | 5/16", 3/8" |
EBLB003 | 5/16"-3/8" | 3000KG/6600LBS | 9000KG/26000LBS | 5/16", 3/8" |
EBLB004 | 3/8"-1/2" | 4300KG/9200LBS | 15000KG/33000LBS | 3/8", 1/2" |
EBLB005 | 1/2-5/8" | 6000KG/13000LB | 21000KG/46000LBS | 1/2", 5/8" |
* WLL IS WORKING LOAD CAPACITY
* BS IS BREAK STRENGTH
