Home > Products > SHACKLE

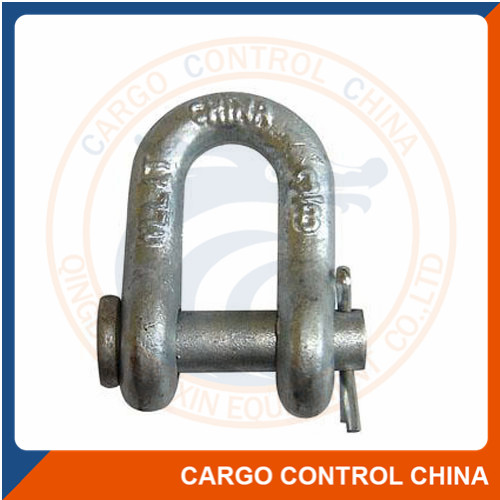

ROUND PIN CHAIN SHACKLES MEET THE REQUIREMENTS OF FEDERAL SPECIFICATION RR-C-271D TYPE IVB,GRADE A,CLASS2

NOMINAL SIZE (IN.)	WORKING LOAD LIMIT (TONS)	DIMENSIONS (IN.)											WEIGHT EACH (LBS.)
NOMINAL SIZE (IN.)	WORKING LOAD LIMIT (TONS)	A	B	C	D	E	F	G	K	L	M	N	G-210 S-210	G-215 S-215
1/4	1/2	0.47	0.31	0.25	0.25	0.97	0.61	0.88	1.59	0.19	1.38	1.34	0.11	0.10
5/16	3/4	0.53	0.38	0.31	0.31	1.16	0.75	1.03	1.91	0.22	1.66	1.59	0.17	0.18
3/8	1	0.66	0.44	0.38	0.38	1.41	0.91	1.25	2.30	0.25	2.03	1.86	0.24	0.25
7/16	11/2	0.75	0.50	0.44	0.44	1.63	1.06	1.44	2.66	0.31	2.38	2.13	0.40	0.38
1/2	2	0.81	0.63	0.50	0.50	1.81	1.19	1.63	3.03	0.38	2.69	2.38	0.59	0.50
5/8	31/4	1.06	0.75	0.62	0.63	2.31	1.50	2.00	3.75	0.44	3.34	2.910	1.21	1.21
3/4	43/4	1.25	0.88	0.81	0.75	2.75	1.81	2.38	4.53	0.50	3.97	3.44	2.25	2.00
7/8	61/2	1.44	1.00	0.97	0.88	3.19	2.09	2.81	5.33	0.50	4.50	3.81	3.16	3.28
1	81/2	1.69	1.13	1.00	1.00	3.69	2.38	3.19	5.94	0.56	5.07	4.53	4.75	4.75
11/8	91/2	1.81	1.25	1.25	1.13	4.06	2.69	3.58	6.78	0.63	5.59	5.13	6.75	6.3
11/4	12	2.03	1.38	1.38	1.25	4.53	3.00	3.94	7.50	0.69	6.16	5.50	9.06	9.00
13/8	131/2	2.25	1.50	1.50	1.38	5.00	3.31	4.38	8.28	0.75	6.84	6.13	11.63	12.00
11/2	17	2.38	1.62	1.62	1.50	5.38	3.62	4.81	9.06	0.81	7.35	6.50	15.95	16.15
13/4	25	2.88	2.12	2.12	1.75	6.38	4.19	5.75	10.97	1.00	9.08	7.75	26.75	29.96
2	32	3.25	2.00	2.00	2.00	7.25	4.81	6.75	12.28	1.22	10.34	8.75	42.31	43.25
21/2	55	4.13	2.62	2.62	2.62	9.38	5.69	8.00	14.84	1.38	13.00	-	71.75
