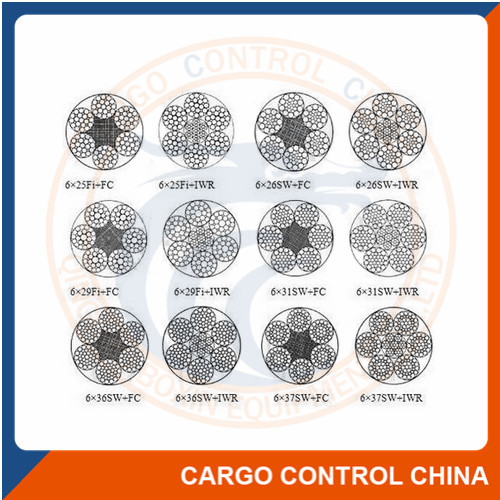

Home > Products > WIRE ROPE

Nominal Diameter (mm)	Approximate Weight (kg/100m)		(N/mm2) Nominal T/S
			1470		1570		1670		1770		1870
			(KN) Min B/L
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
6	13.68	15.0	17.4	18.8	18.6	20.1	19.8	21.4	21.0	22.7	22.2	24.0
8	24.3	26.7	31.0	33.5	33.1	35.8	35.2	38.1	37.4	40.3	39.5	42.6
10	38.0	41.8	48.5	52.3	51.8	55.9	55.1	59.5	58.4	63.1	61.7	66.6
12	54.7	60.2	69.8	75.3	74.6	80.4	79.3	85.6	84.1	90.7	88.8	95.8
14	74.5	81.9	95.0	102.0	101.0	109	108	116	114	123	120	130
16	97.3	107.0	124.0	133	132	143	141	152	149	161	157.0	170
18	123.0	135.0	157.0	169	167	181.0	178.0	192.0	189.0	204.0	199.0	215.0
20	152.0	167.0	194	209	207	223	220	237	233	252	246	266
22	184.0	202.0	234	253	250	270	266	287	282	304	298	322
24	219.0	241.0	279	301	298	321	371.0	342	336.0	362.0	355.0	383.0
26	257.0	283.0	327.0	353.0	350.0	377.0	372.0	401.0	394.0	425.0	417.0	450.0
28	298.0	328.0	380.0	410.0	406.0	438.0	432.0	466.0	457.0	494.0	483.0	521.0
30	342.0	376.0	436.0	470.0	466.0	503	495	535	525	567	555	599
32	389.0	428	496	535	530.0	572.0	564.0	608	598	645	631	681
34	439.0	483	560	604.0	598	646.0	637.0	687	675	728	713	769
36	492.0	542	628	678.0	671.0	724.0	714.0	770	756	816	799	862
38	549.0	604	700	755.0	748.0	807.0	795.0	858	843	909	891	861
40	608.0	669	776.0	837.0	828.0	894.0	881.0	951.0	934.0	1000	987	1060
42	670.0	737	855	923	913.0	985.0	972.0	1040	1030.0	1110.0	1080.0	1170
44	736.0	809.0	939.0	1010.0	1000.0	1080.0	1060.0	1150.0	1130.0	1210.0	1190.0	1280.0
