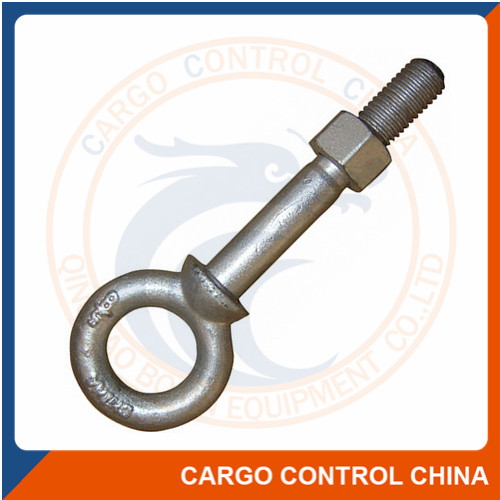

Home > Products > EYE BOLT

SHANK DIA & LENGTH (IN)	WORKING LOAD LIMIT (LBS)	WEIGHT PER 100 (LBS)	DIMENSIONS (IN)
			A	B	C	D	E	F	G	H	J
1/4 X 2	500	6.60	0.25	0.50	0.88	0.19	1.50	2.00	2.94	0.50	0.47
1/4 X 4	500	9.10	0.25	0.50	0.88	0.19	2.50	4.00	4.94	0.50	0.47
5/16 X 2 1/4	800	12.50	0.31	0.62	1.12	0.25	1.50	2.25	3.50	0.69	0.56
5/16 X 4 1/4	800	18.80	0.31	0.62	1.12	0.25	2.50	4.25	5.50	0.69	0.56
3/8 X 2 1/2	1200	21.40	0.38	0.75	1.38	0.31	1.50	2.50	3.97	0.78	0.66
3/8 X 4 1/2	1200	25.30	0.38	0.75	1.38	0.31	2.50	4.50	5.97	0.78	0.66
1/2 X 3 1/4	2200	42.60	0.50	1.00	1.75	0.38	1.50	3.25	5.12	1.00	0.91
1/2 X 6	2200	56.80	0.50	1.00	1.75	0.38	3.00	6.00	7.88	1.00	0.91
5/8 X 4	3500	68.60	0.62	1.25	2.25	0.50	2.00	4.00	6.44	1.31	1.12
5/8 X 6	3500	102.40	0.62	1.25	2.25	0.50	3.00	6.00	8.44	1.31	1.12
3/4 X 4 1/2	5200	144.50	0.75	1.50	2.75	0.62	2.00	4.50	7.44	1.56	1.38
3/4 X 6	5200	167.50	0.75	1.50	2.75	0.62	3.00	6.00	8.94	1.56	1.38
7/8 X 5	7200	225.00	0.88	1.75	3.25	0.75	2.50	5.00	8.46	1.84	1.56
1 X 6	10000	366.30	1.00	2.00	3.75	0.88	3.00	6.00	9.97	2.09	1.81
1 X 9	10000	422.50	1.00	2.00	3.75	0.88	4.00	9.00	12.97	2.09	1.81
1 1/4 X 8	15200	650.00	1.25	2.50	4.50	1.00	4.00	8.00	12.72	2.47	2.28
1 1/4 X 12	15200	795.00	1.25	2.50	4.50	1.00	4.00	12.00	16.72	2.47	2.28
1 1/2 X 15	21400	1425.00	1.50	3.00	5.50	1.25	6.00	15.00	20.75	3.00	2.75
