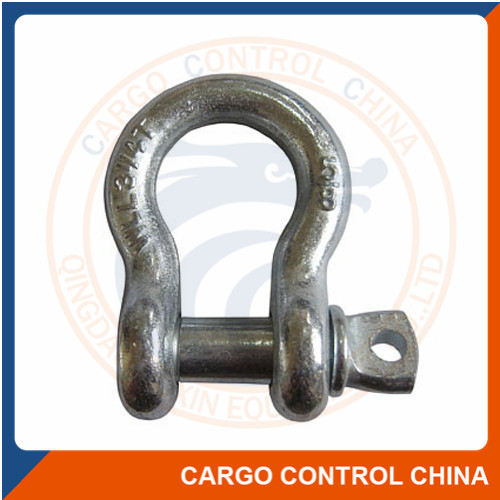

G-209 S-209 SCREW PIN
SCREW PIN ANCHOR SHACKLES MEET THE REQUIREMENTS OF FEDERAL SPECIFICATION RR-C-271D TYPE IVA,GRADE A,CLASS2.
NOMINAL | WORKING | DIMENSIONS(IN.) | WEIGHT EACH | ||||||||||||
A | B | C | D | E | F | G | H | L | M | N | P | G-209 | G-213 | ||
3/16 | 1/3 | .38 | .25 | .88 | .19 | .60 | .56 | .98 | 1.47 | .16 | 1.12 | -- | .19 | .05 | -- |
1/4 | 1/2 | .47 | .31 | 1.13 | .25 | .78 | .61 | 1.28 | 1.84 | .19 | 1.38 | 1.34 | .25 | .12 | .13 |
5/16 | 3/4 | .53 | .38 | 1.22 | .31 | .84 | .75 | 1.47 | 2.09 | .22 | 1.66 | 1.59 | .31 | .19 | .17 |
3/8 | L | .66 | .44 | 1.44 | .38 | 1.03 | .91 | 1.78 | 2.49 | .25 | 2.03 | 1.86 | .38 | .31 | .25 |
7/16 | L1/2 | .75 | .50 | 1.69 | .44 | 1.16 | 1.06 | 2.03 | 2.91 | .31 | 2.38 | 2.13 | .44 | .38 | .38 |
1/2 | 2 | .81 | .63 | 1.88 | .50 | 1.31 | 1.19 | 2.31 | 3.28 | .38 | 2.69 | 2.38 | .50 | .63 | .70 |
5/8 | 31/4 | 1.06 | .75 | 2.38 | .63 | 1.69 | 1.50 | 2.94 | 4.19 | .44 | 3.34 | 2.91 | .69 | 1.38 | 1.50 |
3/4 | 43/4 | 1.25 | .88 | 2.81 | .75 | 2.00 | 1.81 | 3.50 | 4.97 | .50 | 3.97 | 3.44 | .81 | 2.25 | 2.32 |
7/8 | 61/2 | 1.44 | 1.00 | 3.31 | .88 | 2.28 | 2.09 | 4.03 | 5.83 | .50 | 4.50 | 3.81 | .97 | 3.38 | 3.40 |
L | 81/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | .56 | 5.07 | 4.53 | 1.06 | 5.32 | 5.00 |
L1/8 | 91/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | .63 | 5.59 | 5.13 | 1.25 | 6.81 | 6.97 |
L1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | .69 | 6.16 | 5.50 | 1.38 | 9.50 | 9.75 |
L3/8 | 131/2 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | .75 | 6.84 | 6.13 | 1.50 | 13.25 | 13.25 |
L1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | .81 | 7.35 | 6.50 | 1.62 | 17.20 | 17.25 |
L3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 | 30.38 | 29.46 |
2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.34 | 8.75 | 2.40 | 45.00 | 45.75 |
21/2 | 55 | 4.13 | 2.75 | 10.50 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13.00 | -- | 3.13 | 85.75 | -- |
